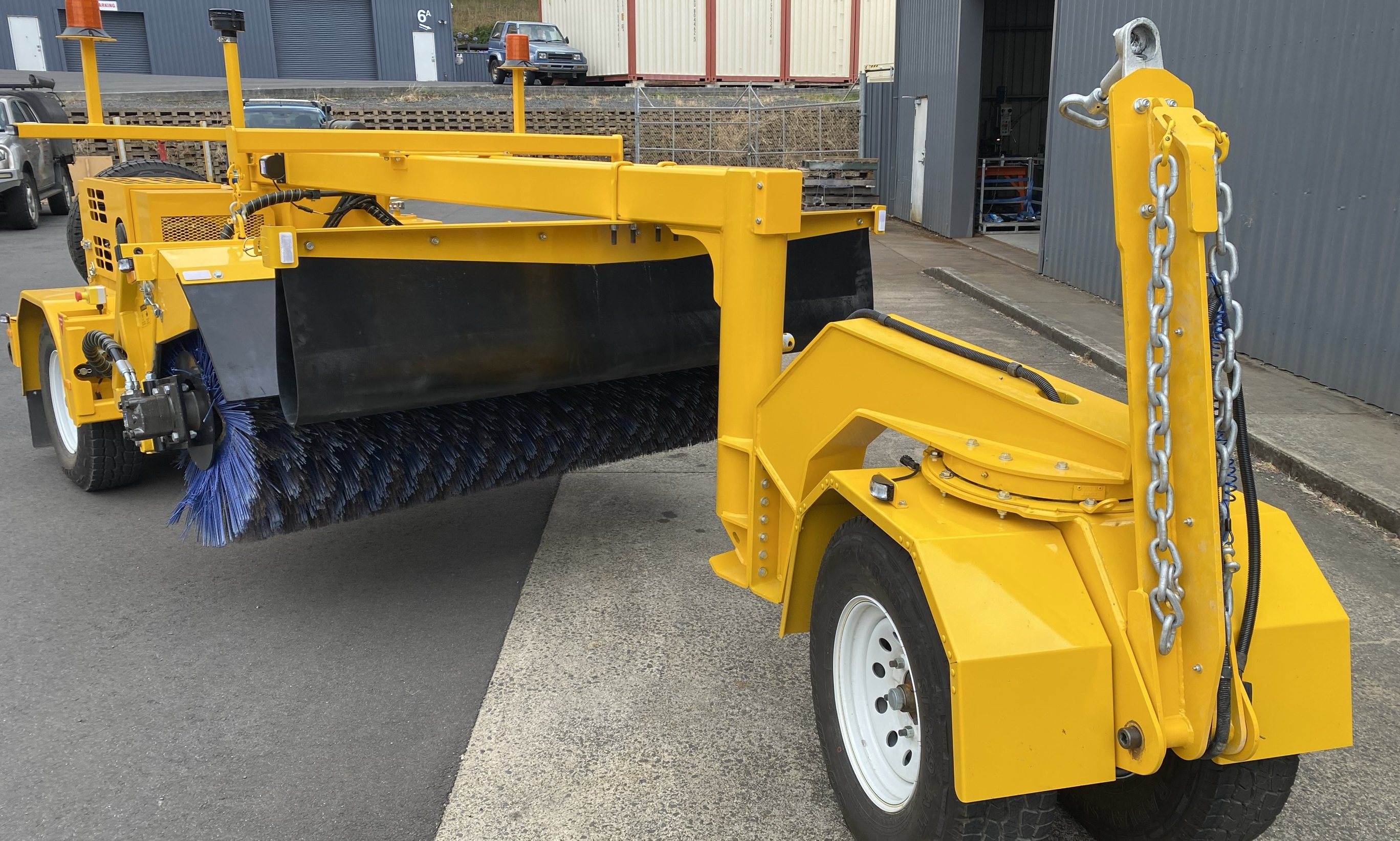

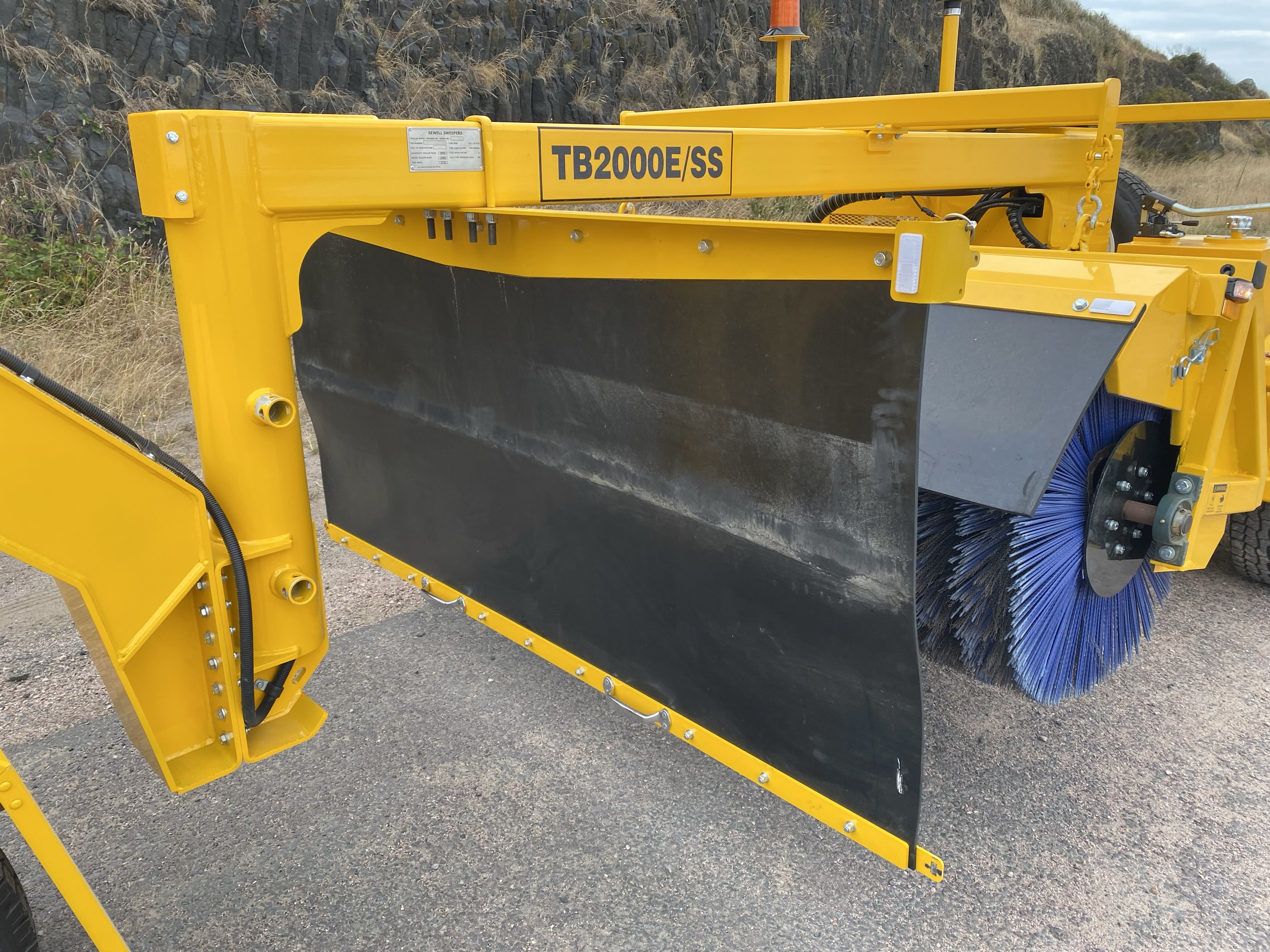

TB2000MS road broom

DESIGNED TO BE BEST IN CLASS AND ROBUSTLY BUILT TO BE DEPENDABLE AND RELIABLE UNDER THE TOUGHEST CONDITIONS in spray sealing, road construction and specialty sweeping applications.

BROCHURE

Product Summary

Sewell Sweepers offer a mine spec. specific road broom for minesite haulroads. Not only is the unit ideal for the cleaning of debris from haul and service roads, but also for buffing emulsion surfaces that may cause interference with autonomous haulage trucks,etc. The Australian-made, Australian Design Rules (ADR) compliant road brooms are designed to be best in class, and to operate efficiently and safely across public roads. Using 60+ years of engineering expertise. Through customer testimonies and product follow up are dependable and reliable under the toughest mining conditions. Product support and parts availability are to the highest industry standard.

Technical Specifications

  • BROOM TYPE: Self-powered, tow-behind
  • ENGINE: Kubota, 25 KW, 4-Cylinder, Water-Cooled, Diesel Engine
  • BRAKES - STANDARD: Electric
  • HAND BRAKE: Standard
  • BRUSH DIAMETER: 34” / 863.6mm
  • BRUSH LENGTH: 2000mm
  • BRUSH SPEED: Adjustable 50-140 rpm
  • BRUSH TYPE: Poly, Wire or a combination of poly and wire.
  • BRUSH SEGMENTS: 42
  • BROOM WEIGHT: 2400kg GVM
  • TOW BALL DOWNFORCE - STANDARD: 300kg
  • ROAD BROOM LENGTH: 5200mm
  • ROAD BROOM HEIGHT: 1870mm
  • ROAD BROOM WIDTH: 2400mm
  • REMOTE CONTROL: Remote-control system for lower/raise, slew and brush rotation functions for in-cab control. (Spare remote optional)
  • ANGULAR SWEEP: Maximum angle 30º right or left of centre, with the ability to side shift.
  • FUEL TANK - STANDARD: 150lts with lockable cap.
  • WHEELS - QUANTITY: 2, plus 1 x spare.
  • TYRES: 265/75-R16 Pressure 400 kPa (58 PSI)
  • RIMS: 16x7
  • LIGHTING: LED trailer lights and 2 x flashing beacon warning lights.
  • REVERSE ALARM: Audible reversing alarm increases in volume automatically in a noisy environment.
  • TRANSPORTATION SAFETY: Brush hood travel links x 2.
  • OPERATION & MAINTENANCE MANUAL: Yes.
  • WARRANTY: Engine warranty is a 24-month or 2000-hour Kubota warranty,  whichever comes first, supported by Sewell Sweepers. The road broom is covered by a 24-month Sewell Sweepers warranty, as are engine accessories such as alternator, muffler, radiator, solenoids etc. Consumables not covered.
  • E-STOP SWITCH: 3 x standard (2 x on machine, 1 x on remote)
  • WHEEL NUT INDICATORS: Standard
  • FIRE EXTINGUISHER: Standard
  • HOSE GUARDING: Optional, factory build only.
  • REPLACEMENT TRANSMITTER REMOTE CONTROL: Optional.
  • REPLACEMENT BRUSHES: Optional, poly/wire combination, poly only or wire only.
